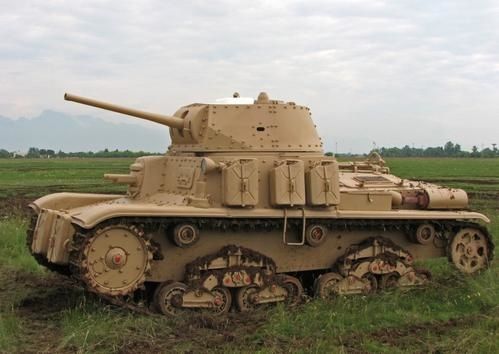

Carro Armato M13/40 was an armored vehicle (tank, AFV or armoured fighting vehicle) in combat use during the Second World War (World War II or WWII) in the European theater. The Carro Armato M13/40 was a fully tracked all-terrain vehicle designed for military operations. M13/40 was produced and deployed by the Italian Army of Italy, an Axis ally of Nazi Germany (the Third Reich). The technical drawing (plan, layout or profile) shows the general appearance characteristics of the specified model (version) of the M13/40 tank for purposes of identification and reference. For more detailed information about this armored fighting vehicle,






GENERAL DATA
Formal Designation Carro Armato M13/40
Manufacturer(s) Fiat
Production Quantity 779 Production Period 1940-1941
Type Medium Tank Crew 4
Length hull/overall (m) 4.94 Barrel Overhang (m) n.a.
Width (m) 2.21 Height (m) 2.38
Combat Weight (kg) 14000 Radio Equipment n.a.
FIREPOWER
Primary Armament 47mm L/32 Ammunition Carried 104
Traverse (degrees) Manual (360°) Elevation (degrees) -10° to +20°
Traverse speed (360°) - Sight n.a.
Secondary Armament 4 x Breda M38 MG (coaxial, 2 x bow, AA) Ammunition Carried 3048
MOBILITY CHARACTERISTICS
Engine Make & Model SPA TM40 No. of Links/Track n.a.
Type & Displacement Diesel, 8 cylinder Track Width n.a.
Horsepower (max.) 125hp@1800rpm Track Ground Contact n.a.
Power/Weight Ratio 8.9 hp/t Ground Pressure 13.2 psi
Gearbox 4 forward, 1 reverse Ground Clearance (m) 0.41
Fuel Diesel Turning Radius (m) n.a.
Range on/off road (km) 200 Gradient (degrees) 40°
Mileage (liters/100km) 114 on road Vertical Obstacle (m) 0.8
Fuel Capacity (liters) 227 Fording (m) 1.0
Speed on/off road 32/12 km/h Trench Crossing (m) 2.1
ARMOR PROTECTION
Armor (mm@degrees) Front Side Rear Top/Bottom
Hull 30@round 25@0° 25@20° 6@90°
Superstructure 30@11° 25@9° 25@0° 14@90°
Turret 37@16° 25@22° 25@22° 14@85°




M13/40
