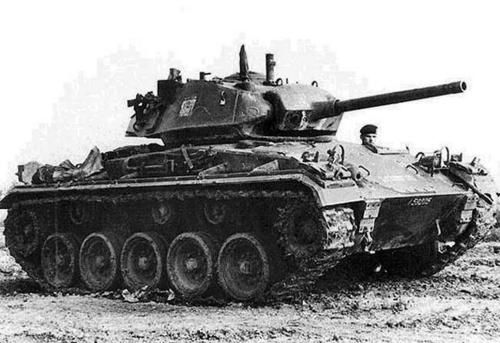

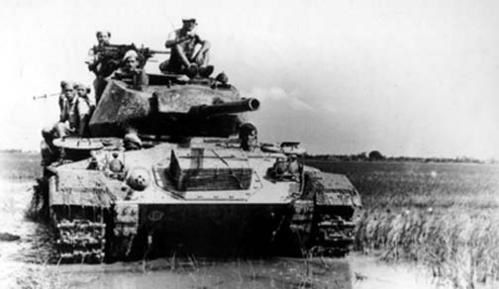

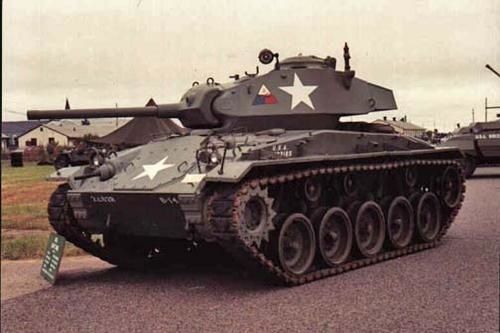

Light Tank M24 Chaffee was an armored vehicle (tank, AFV or armoured fighting vehicle) in combat use during the Second World War (World War II or WWII) in various theaters. The M24 was a fully tracked all-terrain vehicle designed for military operations. M24, also known as the Chaffee, was produced and deployed by the US Army of the United States of America (USA). The technical drawing (plan, layout or profile) shows the general appearance characteristics of the specified model (version) of the M24 tank for purposes of identification and reference.



GENERAL DATA
Other Designation(s) Light Tank M24 Chaffee
Manufacturer(s) n.a.
Production Quantity 4731 Production Period Apr. 1944-Aug. 1945
Type Light Tank Crew 4
Length hull/overall (m) 5.56/5.03 Barrel Overhang (m) 0.53
Width (m) 3.00 Height (m) 2.77
Combat Weight (kg) 18400 Radio Equipment SCR508/528/538
FIREPOWER
Primary Armament 75mm Gun M6 Ammunition Carried 48
Traverse (degrees) Hydraulic (360°) Elevation (degrees) -10° to +15°
Traverse speed (360°) 15 sec. Sight n.a.
Secondary Armament 1 x .50 caliber MG HB M2 (AA) Ammunition Carried 440
2 x .30 caliber MG M1919A4 (coaxial, bow) 3750
MOBILITY CHARACTERISTICS
Engine Make & Model 2 x Cadillac Series 44T24 Track Links 75/track
Type & Displacement 2 x V8, 5.7 liters Track Width 40.6 cm
Horsepower (max.) 2 x 148hp@3200rpm Track Ground Contact 285.8 cm
Power/Weight Ratio 16.1 hp/t Ground Pressure 11.3 psi
Gearbox 2 forward, 1 reverse Ground Clearance (m) 0.46
Fuel Gasoline (Petrol) Turning Radius (m) 14.0
Range on/off road (km) 161 Gradient (degrees) 31°
Mileage (liters/100km) 311 on road Vertical Obstacle (m) 0.91
Fuel Capacity (liters) 500 Fording (m) 1.02
Speed on/off road 56 km/h Trench Crossing (m) 2.44
ARMOR PROTECTION
Armor Detail Front Side Rear Top/Bottom
Hull 25mm@45° 25mm@88° (front) 19mm@48° 13mm@0°
19mm@88° (rear) 10mm@0°
Superstructure 25mm@30° - 19mm@90° 13mm@0°
Turret 38mm@30-90° 25mm@65° R 25mm@90° 25mm@0-22°
25mm@70° L
Mantlet 38mm@30-90° - -
