GENERAL DATA

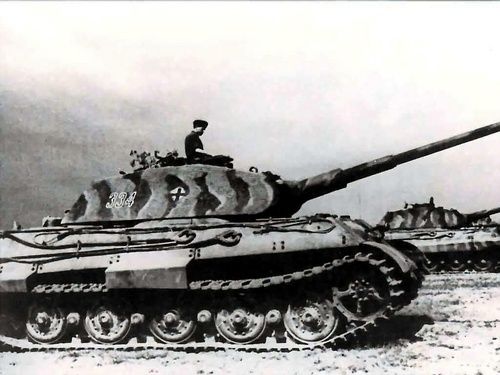

Formal Designation(s) Panzerkampfwagen VI Ausf. B, Tiger II (SdKfz 182), Königstiger, VK4503
Manufacturer(s) Henschel
Production Quantity 489 Production Period Jan. 1944 - Mar. 1945
Type Heavy Tank Crew 5
Length /hull (m) 10.3 Barrel Overhang (m) 3.00
Width /with skirts (m) 3.76 Height (m) 3.08
Combat Weight (kg) 70000 Radio Equipment FuG5
FIREPOWER
Primary Armament 88mm KwK 43 L/71 Ammunition Carried 72
Traverse (degrees) Hydraulic (360°) Elevation (degrees) -7.4° to +15°
Traverse speed (360°) n.a. Sight TZF9b, later TZF9d
Secondary Armament 2 x 7.92 mm MG34 (coaxial, bow) Ammunition Carried 5850
MOBILITY CHARACTERISTICS
Engine Make & Model Maybach HL230P30 Track Links 96/track
Type & Displacement V12, 23.9 liters Track Width 80 cm
Horsepower (max.)

700hp@3000rpm

Track Ground Contact 413 cm
Power/Weight Ratio 10.0 hp/tonne Ground Pressure 13.7 psi
Gearbox 8 forward, 4 reverse Ground Clearance (m) 0.49
Fuel Gasoline (Petrol) Turning Radius (m) 4.8
Range on/off road (km) 170/120 Gradient (degrees) 35°
Mileage (liters/100km) 601 on/863 off road Vertical Obstacle (m) 0.85
Fuel Capacity (liters) 1036 Fording (m) 1.63
Speed on/off road 35-42/14-30 km/h Trench Crossing (m) 3.00
ARMOR PROTECTION
Armor Detail Front Side Rear Top/Bottom
Hull 100mm@40° 80mm@90° 80mm@60° 25-40mm@0°
Superstructure 150mm@40° 80mm@65° - 40mm@0°
Turret 180mm@81° 80mm@69° 80mm@69° 40mm@0-12°
Mantlet 100mm@Saukopf - - -
