Vought F4U Corsair
The US Navy Bureau of Aeronautics had a long tradition of issuing proposals for aircraft which pushed the limits of available technology. This stimulated the manufacturers ability to respond with new technology to meet the challenge. When "BuAer" sent its proposal for a high performance, carrier based fighter to United Aircraft Corporation (parent company of Vought-Sikorsky) on February 1, 1938, it seemed the Navy might have pushed technology to the point of giving it a hernia. C. J. McCarthy, who was Vought’s General Manager, called in the company’s chief engineer, Rex Beisel. Rex was one of those people who lived by the old motto "The difficult we do immediately. The impossible will take a week, ten days at the most." An elite team was selected for the development of Vought Design #V-166; Frank Albright as project engineer; Paul Baker as aerodynamics engineer; James Shoemaker as propulsion engineer. Each had an assistant. These engineers submitted their work to Beisel who then integrated it all into a final design.
Early on, Shoemaker chose the Pratt-Whitney R-1830 Wasp air-cooled radial engine because of it’s long history of reliability, and the V-166-A was designed around this engine. But, in 1940, the BuAer’s quest for speed resulted in a switch to the experimental XR-2800-4 version of the Pratt-Whitney Double Wasp, with a two-stage supercharger for the prototype XF4U-1 Corsair. The R-2800 engine was the most powerful engine in the world in 1940, exceeding 100 hp (74.6 kW) per cylinder for each of its 18 cylinders. The change in engines resulted in the design number being changed to Vought Design #V-166-B. The V-166-A was never built.
With the awesome 2,804 cubic inch (46 liter) Double Wasp air-cooled radial engine developing 1,850 hp (1,380.6 kW), the only way to convert that kind of horsepower efficiently into thrust was with a huge Hamilton Standard Hydromatic, 3 blade prop which measured 13 feet 4 inches (4.06 meters) in diameter. And that created a problem of deck clearance for the prop. It seemed either the main landing gear had to be lengthened, or the prop had to be shortened.
Since the landing gear had to be very strong to withstand the pounding of a carrier deck landing, a short, stout leg was required. Also, there wouldn’t be enough room in the wing to properly stow a longer gear. And, if the prop were shortened, much of the horsepower of the Double Wasp would be wasted. So, Vought engineers came up with the distinctive inverted gull-wing design which forever characterized the F4U Corsair. This "bent wing" design allowed the huge prop to clear the deck while providing for a short, stout landing gear. And, as a byproduct, the wing also improved the aerodynamics of the intersection where the wing attaches to the fuselage, boosting the top speed.
It was a very "slick" looking plane using flush riveting and a new technique developed jointly by Vought and the Naval Aircraft Factory called "spot-welding". In order to make the Corsair as aerodynamically clean as possible, there was nothing protruding into the air stream. The intake for the turbo-supercharger, intercooler and the oil cooler were located in slots in the inboard leading edges of the wings. Vought designed the fuselage with a circular cross-section which fit snugly over the Pratt-Whitney engine. The F4U was the first Navy craft to have landing gear which retracted flush into the bottom of the wing, though it took some effort. Other craft had retracting gear, but there was always some bulge or part of the wheel exposed. Vought engineers designed the Corsairs wheels to swivel 90º and retract straight back to fit flat inside the bottom of the wing. Two panels then closed over the gear making a perfectly smooth fairing. The idea was to mate the most powerful engine with the smallest, cleanest possible airframe
The XF4U-1 first went aloft on May 1, 1940 and five months later flew the 45 miles (73 km) between Stratford and Hartford, Connecticut at a speed of 405 miles per hour (651.8 kph), becoming the first production aircraft to exceed 400 mph in level flight. The US Navy was very pleased with the performance of the Corsair and, in June 1941, ordered 584 copies. Over the next 11 years that figure would grow to over 12,500 F4Us.
Several stumbling blocks developed when carrier trials were held aboard the USS Sangamon and other carriers in late 1941. The biggest problem was the long nose. It stuck out 14 feet (4.27 m) in front of the pilot, and when the Corsair was sitting in take-off position, the nose pointed up at an angle sufficient to block forward vision to about 12º above the horizon. In carrier landings it was practically impossible to see the Landing Signals Officer once the Corsair was lined up with the carrier deck on final approach. Adding to this problem were oil and hydraulic leaks from the engine compartment which seeped past the cowl flaps and smeared the windshield, further restricting visibility.
Landing on a carrier deck required the pilot to have the plane at stall speed just as the tail-hook snagged the deck wire, but this was made very difficult by the wicked stall characteristics of the F4U. Just as stall speed was reached, the left wing tended to drop like a rock. In a deck landing this could cause the landing gear to collapse resulting in injuries to the pilot and severe damage to the aircraft. Assuming luck was with the pilot and he landed intact, the Corsair normally "bottomed out" the shock absorbers as it slammed down on the deck. The resulting recoil caused the plane to bounce high in the air. The tailhook itself sometimes failed to "trap" the plane by engaging an arrestor wire. If this happened on a straight deck carrier it usually meant the aircraft plowed into the planes parked forward. It was said on a straight deck carrier there were only two kinds of landings; a "trap" and a catastrophe!

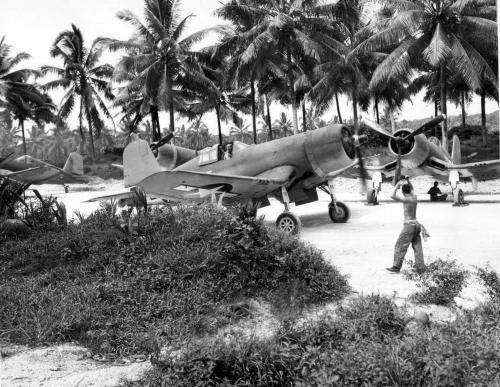

As the Corsair was thought by the Navy to be unsuitable for carrier duty, it was given to the U.S. Marines for land-based operations where it earned an outstanding combat record. Britain, France, New Zealand, Australia also received the F4U during WWII.
It was the British who finally worked out a method of landing the Corsair on their carriers in spite of the visibility problems caused by the long nose. Instead of the normal downwind-crosswind-final approach method, the British simply turned downwind, then made a slow, continuous curve which aligned the Corsair with the deck only at the last second before the aircraft touched down and trapped. This method allowed the pilot to keep the Landing Signals Officer in view right up to the moment the plane was over the fan-tail where the LSO gave the sign to either "cut" or make another attempt.
To alleviate the problem of oil and hydraulic fluid smearing the windshield, the Brits simply wired shut the cowl flaps across the top of the engine compartment, diverting the oil and hydraulic fluid around the sides of the fuselage. Numerous other simple, effective alterations were devised to alleviate the dreadful stall characteristics, landing bounce and tailhook problems (among others), and these modifications were incorporated into the production line. In 1944 the US Navy decided to again try landing the F4U on carriers, and this time succeeded. It turned out to be an extremely wise decision.
As the nature of the war changed, the Corsair also changed. There were seven different dash numbers, some built exclusively for foreign countries (the F4U-7 for the French Aeronavale), and one was never built at all (the F4U-6). Some dash numbers had letter suffixes designating different changes in the airframe, weapons or engine. In addition to Vought, the Corsair was built by the Goodyear Aircraft Company, with a lesser production run by Brewster Aeronautical Corporation.
There were also night fighter versions (designated by the suffix letter "N"), and photo versions (with the suffix "P"). The Corsair underwent over 950 major engineering changes over is lifetime though none changed the distinctive profile of the F4U. Most often, production aircraft were simply pulled off the assembly line and used as test beds. Some of these were designated prototypes with the prefix "X" (such as the "XF4U-3"). By the end of Corsair production 1952, there were 16 separate models on the books.
Depending on which Air Squadron you were in, the F4U had many nicknames: "Hose Nose", "Bent Wing Bird", "Hog" and "Ensign Eliminator", the latter due to it’s stall and landing characteristics. Under the right circumstances, the wing mounted air intakes caused a pronounced whistling sound. For that reason, Japanese ground troops called it "Whistling Death".
Several varieties of the Pratt-Whitney R-2800 Double Wasp radial engine were used in the Corsair. Some used a water-methanol injection to increase the power for short sprints. This was called "War Emergency" power and had a suffix "W" after the dash number of the engine. During the Korean War, there were modifications to cope with the extreme cold encountered in that theater. These were designated with the suffix "L" (for "Low" [temp]).
The XF4U-1 was of course the original prototype with a greenhouse type canopy and the Pratt-Whitney R-2800-4 radial which delivered 1,850 hp (1,380.6 kW) for take-off and 1,460 hp (1,089.6 kW) at 21,500 feet (6,553.2 meters). It had two .50 cal. (12.7 mm) Colt-Browning machine guns mounted in the nose and each wing held two more for a total of six. Its top speed was 405 mph (651.77 kph). It weighed in at a maximum 10,074 pounds (4,569.4 kilograms) and had a range of 1,070 miles (1,722 km).

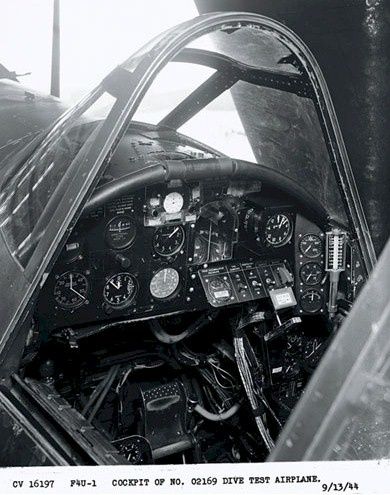

The F4U-1 was the first production type. It started rolling off the assembly lines in September 1942. The production "dash one" had some changes made to the canopy for better vision to the rear, though this would continue to be a problem until the advent of the "bulged" canopy introduced in the F4U-1A.
The two Colt-Browning .50s mounted in the nose of the prototype were removed and all six machine guns were mounted in the wings outside the propeller arc which eliminated the need for synchronization. The dash one also featured the Pratt-Whitney R-2800-8 engine. Some were produced with "-8W" engines. Both engines produced 2,000 hp (1,492.5 kW) for take-off, with the water injected -8W producing an extra 250 hp (186.6 kW) for war emergency. Suffix letters for the dash one Corsair ran from "A" to "D" and the "P" photo model
F4U-2 was a night fighter version of the dash one. For reasons known only to the US Navy, instead of calling it the "F4U-1N" (a method it used on all succeeding models), they gave it the dash two designation. The dash one was transformed into the dash two by modifying the starboard wing and the radio bay in the fuselage to accept the "XAIA" ("Experimental Airborne Intercept [model] A") radar which was hand-built.
The starboard wing was modified by removing the outboard .50 cal. (12.7 mm) Colt-Browning and altering the wing to support the radar scanner. The radio was removed and placed beneath the pilot’s seat and the radar set was placed in the radio bay. There were other slight modifications such as bore sighting the guns to converge fire at 250 yards (228.6 m) and were angled slightly upward so the pilot could fire without bouncing around in the target’s slip-stream. There were no tracers loaded so as not to blind the pilot when firing. The engine was fitted with exhaust flame dampers. After radar installation, the aircraft weighed 235 pounds less than the standard dash one.
The F4U-3 was a bump in the evolution of the Corsair. The US Navy had for many months kicked around the idea of a high altitude (40,000+ ft) (12,192+ m) version of the F4U. Toward the latter half of 1943, they approached Vought with the scheme and Vought designer Russell Clark went to work molding the Corsair fuselage around the XR-2800-16 Double Wasp engine which was fitted with two Bierman model 1009A turbo-superchargers.
At first the project looked very promising with the engine producing 2000 hp (1,492.5 kW) at 40,000 ft (12,192 m). But defects in the turbo-superchargers caused the project to be dropped after a few copies had been produced and tested. The dash three could be identified by a large intake tube fitted to the belly below the engine.
The F4U-4 was one of the more important variants of the Corsair. Seven prototypes were built, anticipating the many problems which would arise from the proposed changes. Five F4U-1s were pulled from the production line to be modified into the XF4U-4A, ‘4B, ‘4C, ‘4D and’4E. Two more "FG-1" aircraft (identical to the Vought F4U-1) were pulled from Goodyear’s production line. They were all fitted with the Pratt-Whitney R-2800-18W engine which produced 2,100 hp (1,567 kW) and sported a new four blade prop. The engine also had methanol-water injection which boosted the war emergency power rating to 2,450 hp (1,828 kW) for about five minutes. The 18W engine necessitated changes in the basic airframe to handle the extra power and the turbo air intake was mounted on the inside bottom of the engine cowling (it was called a "chin scoop") while air for the intercooler and oil cooler continued to be drawn from the wing slots. The F4U-4 was clocked at a top speed of 446 mph (717.75 kph) at 26,200 ft (7,985.76 m).
Although it wasn’t designated by the Navy as such, the dash four was a fighter-bomber for all intents and purposes. It had 6 Colt-Browning .50 cal. (12.7 mm) wing mounted machine guns (the F4U-4C substituted four 20 mm cannon), plus it could carry two 1,000 lb (453.6 kg) bombs or eight 5 inch (127 mm) rockets. The first 300 of the production F4U-1Cs were assigned to Marine Air Group 31 and were taken into the Battle for Okinawa aboard the escort carriers Sitko Bay and Bereton. The Army and Marine riflemen who fought that battle on the ground remember the F4U-4 as the "Sweetheart of Okinawa" and it undoubtedly saved many hundreds of their lives.
The prototype "Dash Five" was flown in December 1945, a few months after World War Two had ended. It utilized all the knowledge built up over the war years and major changes were made to upgrade the F4U-5 Corsair. First, the engine was changed to the Pratt-Whitney R-2800-32W. This was called a "Series E" engine and featured a dual supercharger to boost engine power to 2,350 hp (1,753.7 kW) at 26,200 ft (7,985.8 m). War emergency power was boosted to 2,760 hp (2,059.7 kW). The dual supercharger necessitated removing the chin scoop and installing two "cheek" scoops inside the engine cowling.
Due to the higher horsepower, the fuselage was lengthened by 5 inches (127 mm) and the engine angled down about 2º to provide more stability. Until the dash 5, the outer top wing panels and the control surfaces of the Corsair had been fabric covered. At speed, the fabric tended to deform and slow the aircraft by a few miles per hour. The F4U-5 had all fabric surfaces replaced with sheet duralumin to minimize this problem. Armament was the same as the F4U-4.
A few improvements were made solely for pilot comfort. Cockpit heating was redesigned, controls were made easier to operate and/or automatic. Armrests were installed on the seat, which reclined slightly. With the improvements and the -32W engine, the dash five could operate very comfortably at altitudes approaching 45,000 feet (13,716 meters).
The AU-1 project began life as the F4U-6 but was quickly redesignated by the Navy to reflect its ground attack role. The dash six was never built. The AU-1 was produced solely for the US Marines during the height of the Korean War. Deliveries began in January 1952 and a total of 111 were supplied during the year. The AU-1 was powered by an R-2800-83W Double Wasp with a single stage supercharger, developing 2,300 hp (1,716.4 kW) for take off and 2,800 hp (2,089.6 kW) for War Emergency. Extra armor was added for protection from the small arms fire which would be encountered at the lower altitudes where the AU-1 would be working. It’s ground attack role was underlined by the statistics; max take-off weight was almost 10 tons (9071.9 kg) while the service ceiling was only 19,500 ft (5,943.6 m) and the maximum speed was a mere 238 mph (383 kph)! Ground attack required only enough speed to present a difficult target for ground fire and only enough altitude to properly aim it‘s weapons.
The AU-1 was armed with 10 rockets or 4,000 lbs (1,814.4 kg) of bombs, in addition to four wing mounted 20 mm cannon with 230 rounds per gun. A fully armed AU was an awesome war machine!
The F3A-1 was produced by the Brewster Aeronautical Corporation and was identical to the F4U-1. Internal management problems at the corporation caused the Navy to end Brewster production in 1944 after over a year in which only 735 aircraft rolled off the Brewster assembly line.
Goodyear produced a number of Corsair models identical to the Vought models. But since it was easier to interrupt Goodyear production than Vought, some experimental models were also constructed. Most notably the F2G series which featured an entirely new engine; the Pratt-Whitney R-4360-4 "Wasp Major". The airframe received significant alterations in order to mount this engine. The Wasp Major could deliver 3,000 hp (2,238.8 kW) for take-off and 2,400 hp (1,791 kW) at 13,500 feet (4,114.8 m). Top speed was 431 at 16,400 ft (4,998.7 m). It was armed with four .50 cal. (12.7 mm) Browning machine guns with 300 rounds per gun, and could carry two 1,600 lb (725.8 kg) bombs on wing pylons. The F2G-1 was the land based version, while the F2G-2 was the carrier model. Although hundreds were on order by August 1945, only 5 examples of each were built due to cancellations at the end of hostilities. All ten of these were sold as surplus, and a few could be found at various air races around the country after the war.
The entire production run of the F4U-7 was tailored specifically for the French Navy (the "Aeronavale"). Ninety-four copies were built and all were sold to the Aeronavale. The dash seven was an upgrade of the AU-1 built specially for ground attack. Production of the dash seven began in June, 1952 and when the last one was delivered to the French in December of that year, the long production run of the Vought F4U Corsair came to an end.

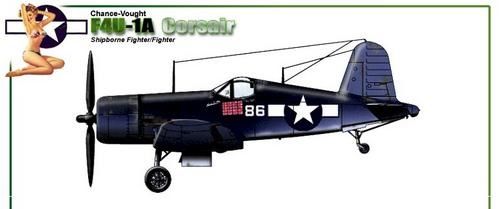

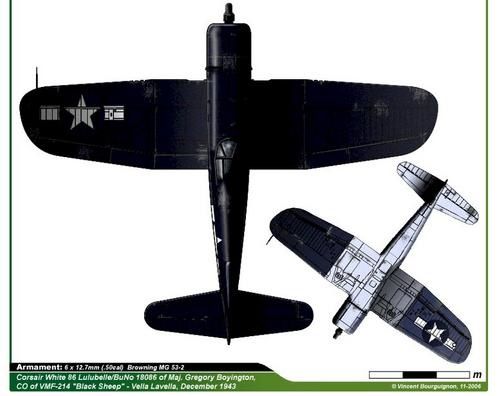

MAJOR GREG "PAPPY "BOYINGTON
C.O.VMF -214 BLACK SHEEP SQUADRON

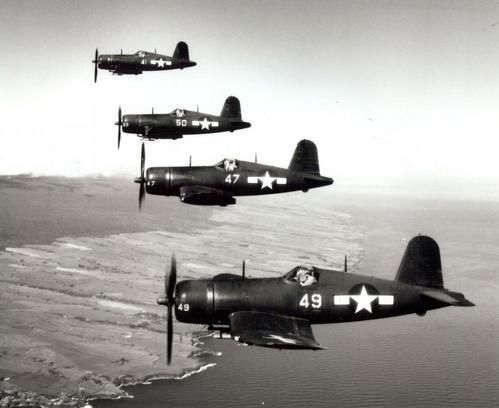

Marine Fighter Squadron 214 was originally commissioned on July 1, 1942, at Marine Corps Air Station Ewa, on the Island of Oahu. Initially called the "Swashbucklers", they participated in the Solomon Islands campaign, flying out of Henderson Field on Guadalcanal. They were disbanded following their combat tour and the squadron designation was given to the Marine command on Espiritu Santo.
In August 1943, a group of twenty-seven young men under the leadership of Major Gregory "Pappy" Boyington (who was later awarded the Medal of Honor) were joined together to form the original "Blacksheep" of VMF-214. Major Boyington had just returned from a year's tour in China as a member of the American Volunteer Group, the "Flying Tigers". In China, he had downed six enemy planes and became, through actual experience, one of the originators of American fighter tactics against the Japanese.
The call sign "Black Sheep" was chosen by the squadron to commemorate the unusual way in which the squadron had been formed. Originally the squadron called itself "Boyington's Bastards" after its commander, but this label was considered unacceptable by the press. The pilots ranged from experienced combat veterans, with several air-to-air victories to their credit, to new replacement pilots from the United States. Major Boyington and Major Stan Bailey were given permission to form the unassigned pilots into a squadron, with the understanding that they would have less than four weeks to have them fully trained and ready for combat. They were very successful.
The Black Sheep ended their second combat tour on January 8, 1944, five days after Major Boyington was shot down and captured by the Japanese. The original Black Sheep were disbanded and the pilots were placed in the pilot pool in Marine Aircraft Group 11. Exploits of this incarnation of the unit were loosely fictionalized in the 1970s television series Baa Baa Black Sheep (later renamed The Black Sheep Squadron), starring Robert Conrad as Boyington.
VMF-214 was reformed on January 29, 1944 at Marine Corps Air Station Santa Barbara near Goleta, California. They deployed aboard the USS Franklin (CV-13) on February 4, 1945 to join on-going operations on Okinawa. On March 19, a Japanese bomber hit the USS Franklin. The explosion and resulting fire caused 772 deaths aboard the Franklin including 32 Black Sheep members. Many Black Sheep aircraft were launching for a strike on mainland Japan at the time. One, First Lieutenant Ken Linder, was given half credit for shooting down the Japanese bomber that struck the Franklin. This ended VMF-214 involvement in World War II.
In April 1945, the Black Sheep were relocated to Marine Corps Air Station El Centro, California, and then to MCAS El Toro, CA in October 1945. In the next few years, the Black Sheep deployed for operations on board the USS Rendova (CVE-114), the USS Bairoko (CVE-115), the USS Badoeng Strait (CVE-116), and the USS Boxer (CV-21).
Vought F4U-4 Corsair
41 ft (12.5 m)
33 ft 8 in (10.3 m)
16 ft 1 in (4.90 m)
314 sq ft (29.17 sq m)
9,205 lb (4,175.3 kg)
12,420 lb (5,633.6 kg)
14,670 (6,654.2 kg)
446 mph (717.75 kph) @ 26,200 ft (7,985.8 m)
000 mph (000 km/h)
41,500 ft (12,649.2 m)
0,000 miles (0,000 km)
1,560 mi (2,510.5 km)
One Pratt-Whitney R-2800-18W Double Wasp eighteen-cylinder radial
Six .50 cal (12.7 mm) Colt-Browning M2 machine guns (some variants had four 20mm cannon) and two 1,000 lb (453.6 kg) bombs or eight 5 in (127 mm) rockets.
F4U-1 In Color
